Charging station “C152A Modern” PD70W EU
Charging station with five Type-C and single USB-A ports.
Supports fast charging protocols.
Detachable power cord, EU plug.
SEARCHING
TOP CATEGORIES

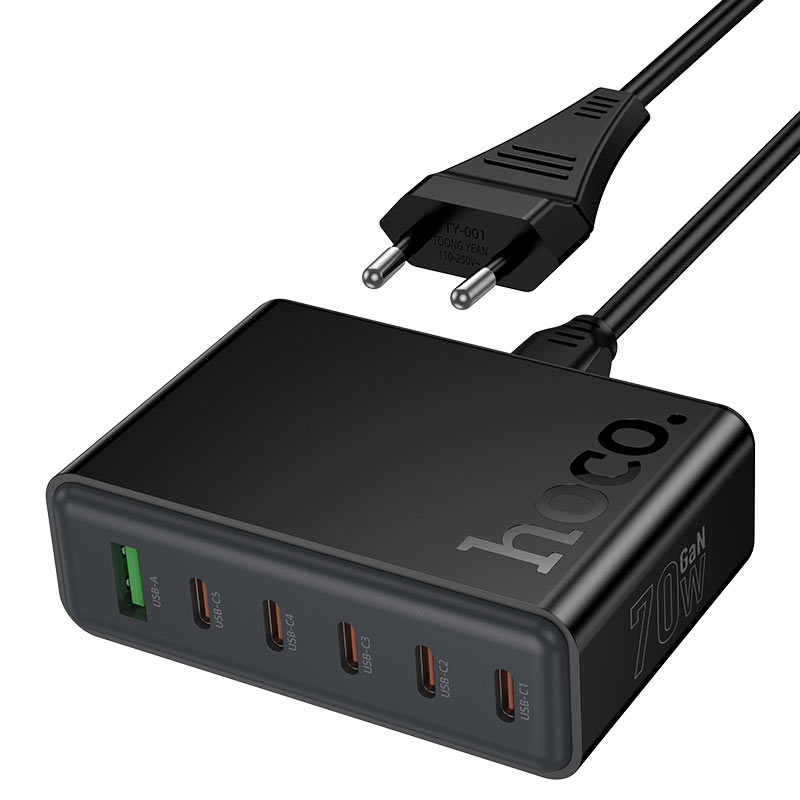

C152A Modern, single USB-A and 5 Type-C ports charging station, detachable power cord, EU plug
1. Input: AC100–240V, 50 / 60Hz, 1A.
2. Output:
1 × Type-C1 – 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 3.35A – 67W max.
PPS: 3.3V – 21V / 3.2A – 67W max.
1 × Type-C2 – 5V / 3A, 9V / 2.22A, 12V / 1.67A – 20W max.
1 × Type-C3 – 5V / 3A, 9V / 2.22A, 12V / 1.67A – 20W max.
1 × Type-C4 – 5V / 3A, 9V / 2.22A, 12V / 1.67A – 20W max.
1 × Type-C5 – 5V / 3A, 9V / 2.22A, 12V / 1.67A – 20W max.
PPS: 3.3V – 11V / 2A – 20W max.
1 × USB-A – 5V / 3A, 9V / 2A, 12V / 1.5A – 18W max.
Two ports output:
Type-C1 + [Type-C2 or Type-C3 or Type-C4 or Type-C5] = 30W + [20W] = 50W max.
Type-C1 + USB-A = 30W + 18W max.
[Type-C2 or Type-C3] + [Type-C4 or Type-C5] = [20W] + [20W] = 40W max.
[Type-C2 or Type-C3] + [USB-A] = [20W] + [18W] = 38W max.
Type-C2 + Type-C3 = 15W max.
Three ports output:
Type-C1 +[Type-C2 or Type-C3] + [Type-C4 or Type-C5] = 30W + [20W] + [20W] = 70W max.
Type-C1 +[Type-C2 or Type-C3] + [USB-A] = 30W + [20W] + [18W] = 68W max.
Type-C4 + Type-C5 + USB-A = 15W max.
Total output:
Type-C1 + [Type-C2 + Type-C3] + [Type-C4 + Type-C5 + USB-A] = 30W + 15W + 15W = 60W max.

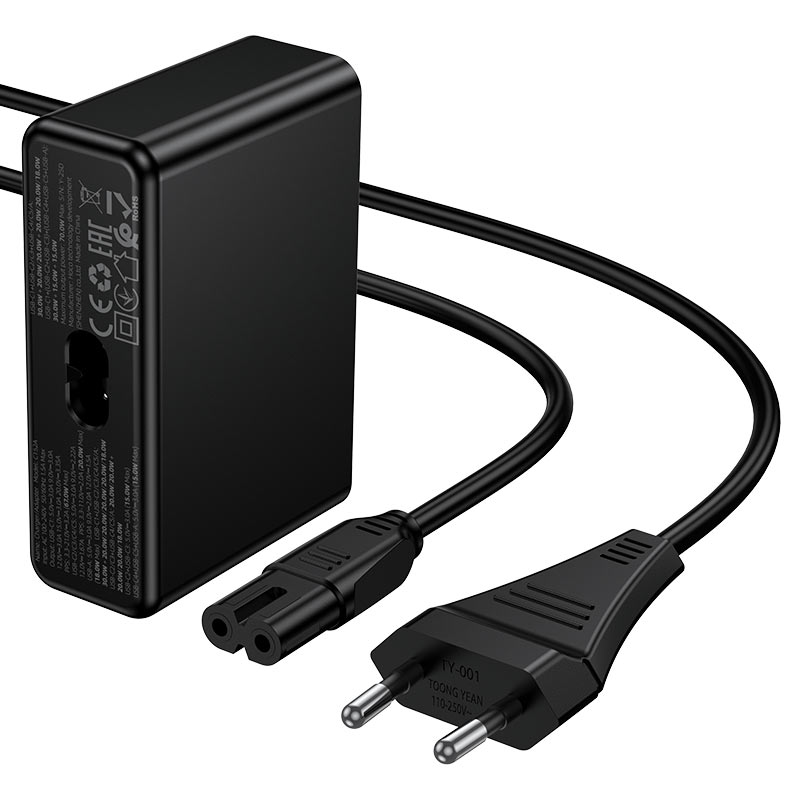

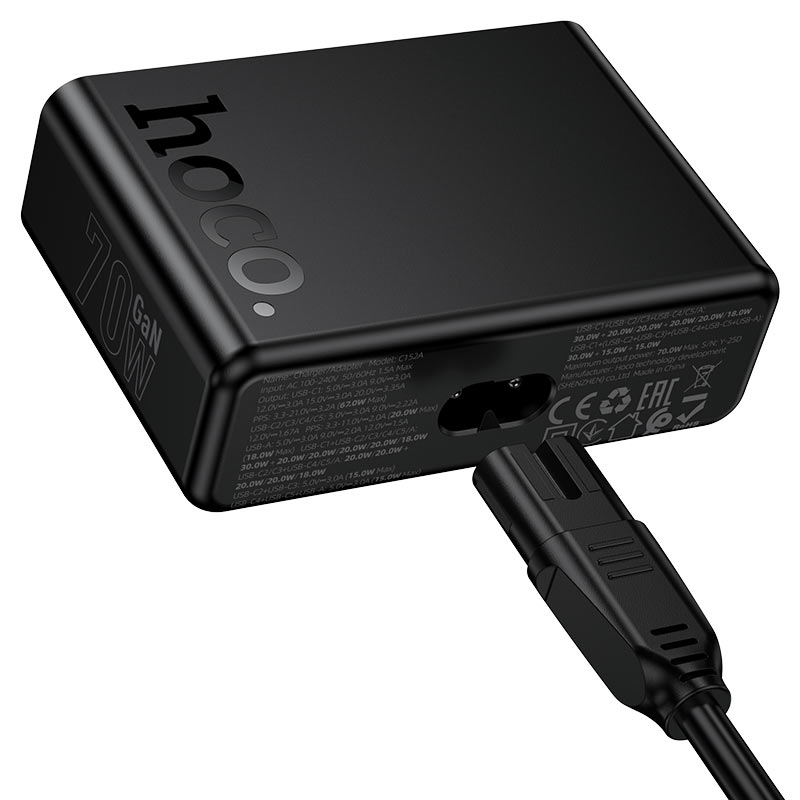

3. Detachable power cord, EU plug.
4. Fast charging protocol support: for PD3.0 / PPS / PD67W / QC3.0 / AFC / FCP / SCP and other fast charging protocols.
5. Material: flame retardant PC.
6. Sizes: 85 × 60 × 28mm. Power cord length: 1.5m.
7. Weight: 229g.
